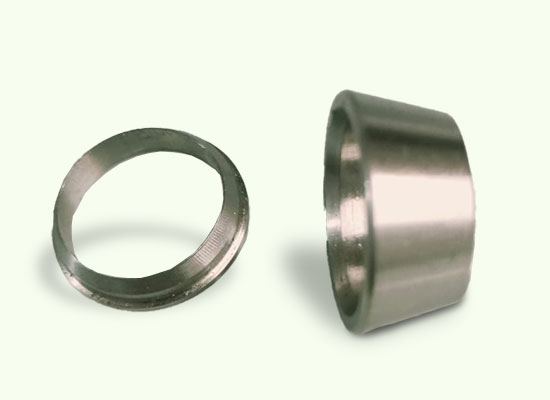

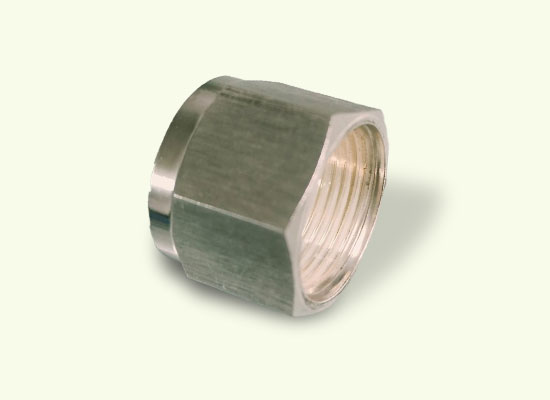

The" Tiger" compression Tube Fitting is a 3 piece fitting of body, nut and ferrules furnished assembled. Ferrules swage on the outer surface of tubing assuring a leak proof Joint Only one end and quarter turn are required from hand assernbled to make safe connection.
Features:
-
Fittings are designed to withstand high-pressure service and severe operation conditions. -
They make safe joint, which hold tight beyond the bursting strength of the tubing itself. -
They meet the severe requirements of the industry performance tests on pressure, vibration, impulse, repeated assembly etc -
Fittings are very easy to assemble because they require no threading, flaring, welding, soldering, only open wrench is needed. -
Design: - Double Ferrule Type -
Size Range: - 1/8" tube OD to 1" tube OD -
End Connection: - ODT/NPT/BSP/SW/BW. -
Material: - SS 316 / SS 304 / CS / Monel / Brass -
Pressure Rating: - 100 kg/cm2 to 400 kg/cm2
Other Features :
-
Compression Type Design -
Double Ferrule Design -
Low torque assembly -
Positive leak free seal after assembly and reassembly -
Standard materials like SS 316, brass, Monel and others are available upon request. -
Variety of end connections and patterns. |

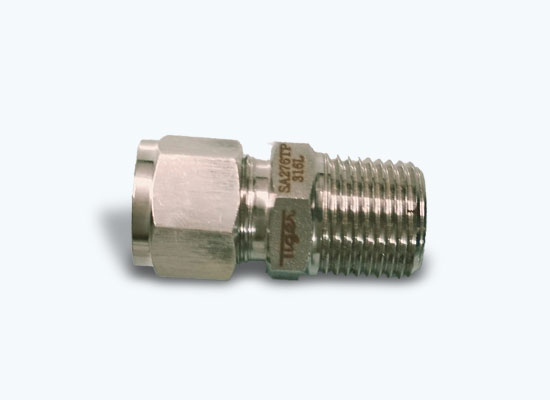

 | Male ConnectorWe manufacture a fine quality male connector which is made from the finest grade of raw material and finds its application in various industries like petro chemical, food, dairy, pulp etc. It is fit to be used with various kinds of tubes like seam less or seam tubing. These provide utmost safety and are designed to withstand high pressure. - Tested by pressure, temperature and impulse
- No threading required
- Material used SS 316 / SS 304/ CS / MONEL / BRASS
- Pressure rating – 100 kg/cm2 to 400 kg/cm2
|
| Female ConnectorWe manufacture a fine range of female connectors which are used for quick opening of liquid flow and available in excellent finish with great durability. We make them in fine copper and brass and these are highly corrosion resistant and do not require any flaring, welding, soldering, or threading. These undergo several tests before being supplied to our clients for uninterrupted service. - Leak proof application
- End connection – ODT/NPT/BSP/SW/BW
- Corrosion resistant
- Customized as required
|

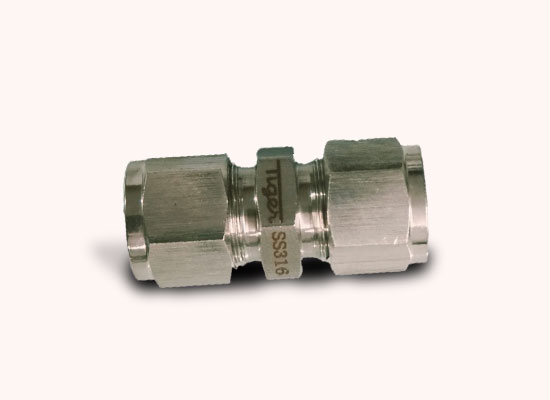

| Tube UnionWe bring you the finest quality tube union in the market which is fabricated using the finest quality raw material in accordance t the industrial normal and is suitable for both national and international market. It has twin outings to connect two fittings at a time of the tube making it twice useful. It is also very durable due to its robust construction and strict quality check. - Twin fittings
- Leak free assembly
- Standard material make available as required
- Double ferrule design
|

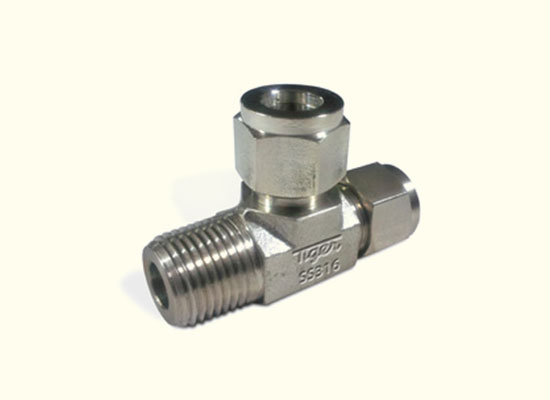

| Male Run TeeWe supply male run tee at reasonable rte with no compromise on its quality. It is used to connect female NPT thread to fractional tube and is highly durable and corrosion free due to its fine make. We make it in perfect finish and different specifications to make it suitable for various industries for functional in many tube fittings. - Compression type design
- Low torque assembly
- No flaring, welding, soldering etc required
- Pressure and temperature tested
|

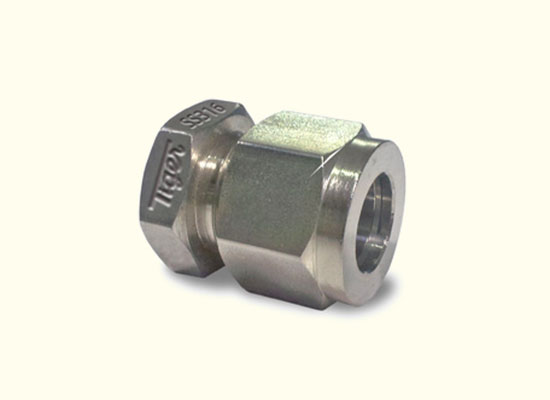

| Tube CapWe manufacture genuine quality tube caps which are used for giving high quality protection to the stored content so that it might not get tarnished while being stored away. It is easy to install and offers very high stability with corrosion resistance. It is tested in many industrial standards like vibration, impulse, repeated assembly and pressure. - Low torque assembly
- Variety of patterns available
- Double ferrule design
- Non bursting with safety measures
|
| Male Branch TeeWe are prime manufacturers of quality standard male branch tee which is used for connecting fractional tube to female NPT thread and provides high durability and leak proof joint without any bursting. It is extremely easy to assemble and reassemble with torque free assembly and compact design .It has a great ability to stand high pressure in severe operation conditions. - Double ferrule design
- End connection – ODT/NPT/BSP/SW/BW
- Easy to assemble
- Leak proof joint
|

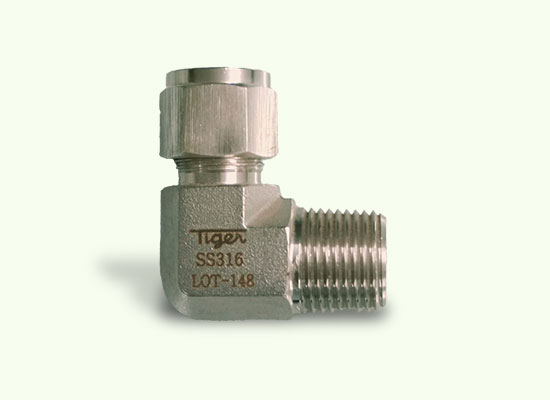

| Male ElbowWe are prime manufacturers of male elbow which is used in various kinds of tube fittings across diverse industries. It is generally used to connect fractional tube to female tampered pipe thread and enable an angled change in the direction of the tubing run. It is available in different raw material and specifications as required by our esteemed clients. - Provide angle directional change
- Corrosion resistant
- Tested on various parameters
- Leak free seal with assembly and reassemble
|

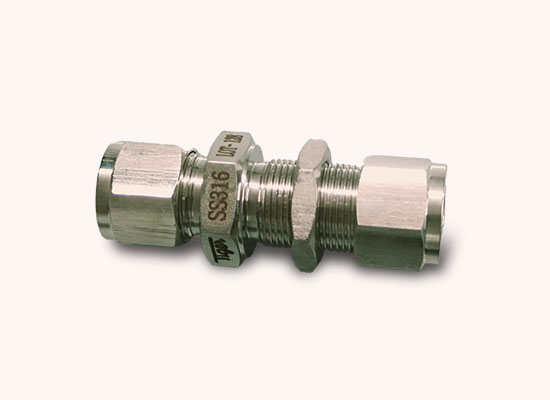

| Bulk Head UnionWe are prime manufacturers of bulk head union which is made using attest technology and get dimensional accuracy to meet the rising needs of our clients. It is not only easy to install but also chemical and corrosion free with high durability due to its robust make with fine raw material. - Excellent performance with high reliability
- Design- double ferrule type
- Low torque assembly
- Variety of end connections and patterns
|
| Female ElbowWe are known for our fine quality female elbow which is used to change the direction of the flow between two pipes or tubes by a definite degree as required in the application or various different industrial tasks. These are capable of standing high pressure and high temperature with resistance against corrosion and high durability. - Ease of installation provide leak resistance also
- Vibration and temperature tested
- Pressure rating – 100kg, cm2 to 400kg, cm2
- Double ferrule design
|

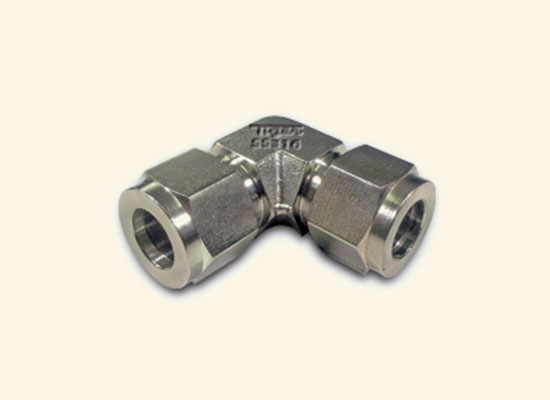

| Union ElbowWe are the prime manufacturers of quality grade union elbows which are made from the finest quality stainless steel and high on durability and chemical and corrosion resistance. It is easy to install as doesn’t require soldering, welding, flaring or threading. When applied on the outer part of the tube it ensures n leakage of any kind take place. - Leak proof joint
- pressure 100kg to 400 kg cm2
- Low torque assembly
- Tested on various parameters
|
| Reducing unionWe are engaged in production of international standard reducing union which is tested by our experts on various parameters to ensure great leakage free transportation when fitted to tubes. These ensure rust and blockage free flow of liquid. These are available in various grade of raw material like stainless steel, nickel alloy, carbon steel etc at very affordable rates. - Popular in high pressure pneumatic applications
- Abrasion and corrosion resistant
- Leak proof safe joint
- Compression type design
|

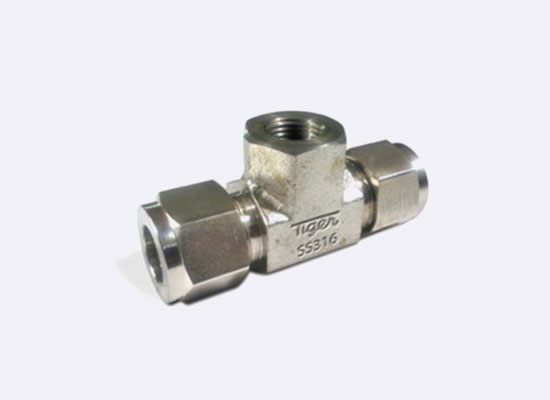

| Female Branch TeeWe are engaged in prime manufacturing of female branch tee which is precisely engineered in different dimensions. These are widely used in industries like oil, gas, shipping, petroleum and food etc. These offer optimum performance in versatile applications in diverse temperatures and pressures. - Design double ferule type
- Dimensional accuracy with chemical resistance
- Tested through vibration, temperature and even impulse
- Safe leak proof joint
|

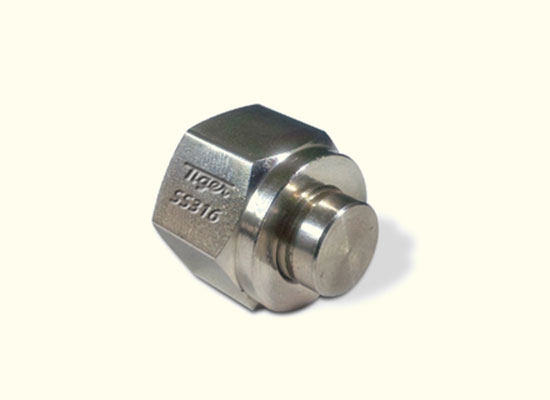

| Tube PlugWe are renowned manufacturers of tube plugs which are specially created to seal the tubes that are damaged in heat exchangers, boilers or condensers. These seal any kind of leakage that might take place with help of a tampered pin. We bring them in many different specifications and metals as required by our clients. These are durable with long life and are chemical and corrosion resistant also. - Rectify any kind of leakage
- Ability to bear excessive heat
- Withstand high pressure and resistance against bursting
- Low torque assembly
|
|
