Needle Valves

Rugged and Compact design, straight and angle pattern type pressure upto 10000 psig used in gases, liquids, vaccum operation, process and instrumentation lines in high pressure and temperature.

Features:

Forged or Bar stock body construction.
Straight or Angled pattern with panel mounting optional.
Integral bonnet with one piece body is available with straight and angle patterns.
Panel mounting nuts allows easy mounting standards.
Metal Seal Bonnet-to-body construction ensures safety.
Veriety of End connections includes " Tiger " single or twin ferrule tube fittings, Male or Female NPT.
Design - Straight, Angle, Cross, Union bonnet and line mounting.
Size range : 1/8" to 1"
End connection : NPT / BSP / SW / BW / ODT
Material : SS 316 / SS 304 / CS / Monel
Pressure Rating - 500 psig to 10000 psig

Angle type Needle Valve NPT

We are known for manufacturing of great quality angle type needle valve which is used in various kinds of applications like gases, liquids and even vacuum operations with high pressure and temperature. These have a metal seat bonnet body construction which makes it very strong and reliable to work under rough conditions and offers high durability.

Pressure rating – 500 psig to 10000 psig
Size range – 1/8 ‘’ to 1’’
Metal seal bonnet body
Straight and angle patterns available

Send Enquiry

Angle type Needle Valve ODT

We are known for the production of world class angle type needle valve ODT which allows fine control over the rate of gas or liquid flowing through it. It contains a thin needle with a point that fits into a conical cup and blocks an orifice in the bottom of the cup. It is highly suitable to work under high temperature and pressure.

Includes single and twin ferrule fittings
End connection – NPT / BSP / SE / BW / ODT
Straight or angled pattern
Panel mounting optional

Send Enquiry

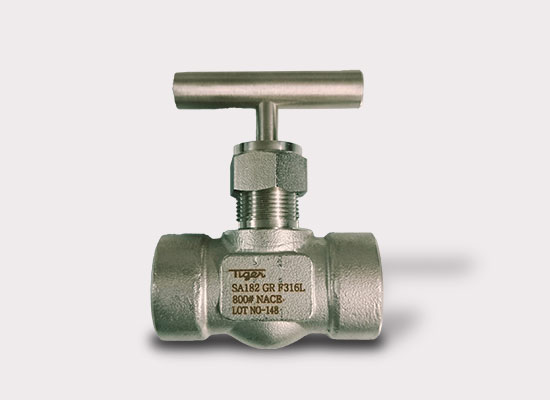

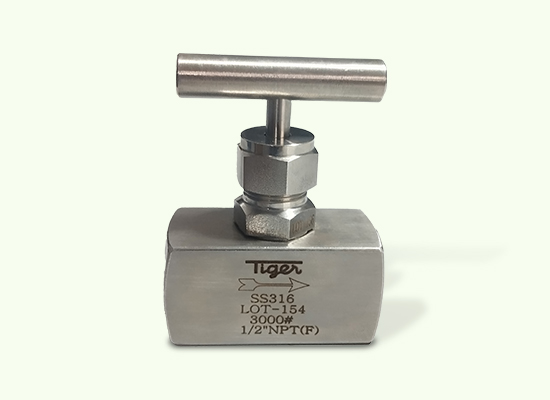

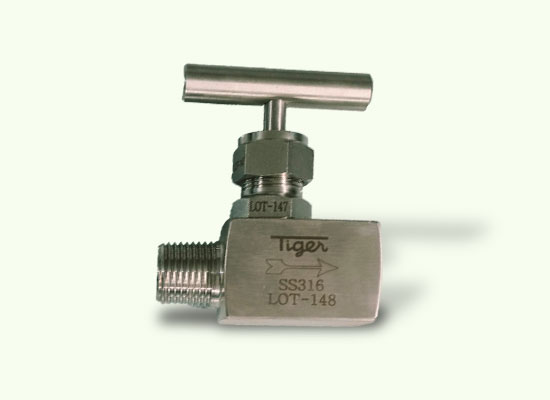

Needle Valve

Our needle valves are known for their fine and standard make in the market. It allows precise regulation of flow. It is popularly used in flow metering applications, especially when a constant, calibrated, low flow rate must be maintained for some time. It contains a thin needle with a point that fits into a conical cup.

Material – SS 316 / SS 304/ CS /MONEL
Metal seal bonnet ensures security
Straight or angled pattern
Rugged and compact design

Send Enquiry

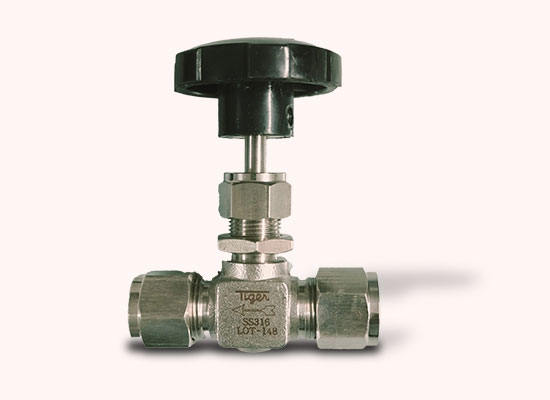

Needle Valve ODT

We manufacture and supply finest quality needle valve ODT which has a long tampered point at the end of the valve stem. It permits smaller seating surface area and is more suitable as a throttle valve. It is used to control flow into delicate gauges which might get damaged by sudden urges of fluid under pressure.

Robust and rigid construction
Easy mounting standards
Size range – 1/8’’ to 1’’
Forged and Bar stock body construction

Send Enquiry

Needle Valve Panel Mounting

We are prime manufacturers of needle valve panel mounting which also controls the end of the work cycle where it is desired for motion to bring slowly to the halt. It can also be adjusted to provide the desired rate of flow. It can also be used in variety of systems due to its fine and precision engineering make.

Precision regulation of flow
Design – Straight, angle, cross
Metal seal bonnet body
Rugged and compact design

Send Enquiry

Union Bonnet Needle Valve

We are prime manufacturers of union bonnet needle valve which are used to control flow into delicate gauges and used in variety of systems. It may be used in vacuum systems when a precise control of gas flow is required at low pressure such as when filing gas filled vacuum tubes etc. It has a rugged and compact design with panel mounting option if required by the client.

Size range – 1/8’’ to 1’’
Single or twin ferrule tube fittings
Design- straight, angle, cross, union bonnet and line mounting
Ideal for great pressure and temperature

Send Enquiry

Needle Valve SW

We are engaged in manufacturing of finest quality needle valve SW which is finely made with compact design and great working results without any leakage or breakage from the flow of the liquid. This valve is constructed without a hand wheel and is adjusted to provide a desired time of operation for a particular subsystem.

End connection – NPT/ BSP/ SW/ BW/ ODT
Forged and bar stock body construction
Work without leakage or breakage
Ideal for all gases, liquid or vacuum operations

Send Enquiry
