Pipe Fittings

The "Tiger" Ball Valves have very compact design. Only a quarter turn operation is require to close the valve from fully open condition and vice-versa. The inside ball moves on Teflon seals, at the adaptor face and stem faces contact with the teflon rings. There is no torque in the operation of valve for long time.

Features:

• Two way on-off 3,4 or 5 way switching model.

• Robust body is available in diverse pattern include 2-way straight and angle bottom entry and side entry 3 way.

• Heavy directional black fenolic handle or lever handle.

• Panel mounting is available as an option.

• Internally loaded stem with shoulder to prevent stem blow out.

• Low operating torque.

• Floating ball design ensures leak proof shut off at high pressure.

• Maximum orifice to minimize the pressure drop.

• Rugged body construction and floating ball is machined from base stock.

• Handle with arrow indicates flow direction allowes quick operation and low torque with 1/4 turn.

• Integral ball-stem is machined form one single piece and best suited to encapsulating ball seals.

• Design : One piece and Three piece.

• Type : Two way, Three way, Four way and line mounting.

• Size : 1/4" to 2" NB is screwed end and 1/2" to 4" NB is flanged end.

• End connection : NPT / BSP / SW / BW and flanged as per BS-10, ASA and DIN Standards.

• Material : SS 316 / SS 304 / CS / Brass with SS working parts

• Pressure Rating - 300 psig to 5000 psig

Rugged and Compact design, straight and angle pattern type pressure upto 10000 psig used in gases, liquids, vaccum operation, process and instrumentation lines in high pressure and temperature.

Features:

• Forged or Bar stock body construction.

• Straight or Angled pattern with panel mounting optional.

• Integral bonnet with one piece body is available with straight and angle patterns.

• Panel mounting nuts allows easy mounting standards.

• Metal Seal Bonnet-to-body construction ensures safety.

• Veriety of End connections includes " Tiger " single or twin ferrule tube fittings, Male or Female NPT.

• Design - Straight, Angle, Cross, Union bonnet and line mounting.

• Size range : 1/8" to 1"

• End connection : NPT / BSP / SW / BW / ODT

• Material : SS 316 / SS 304 / CS / Monel

• Pressure Rating - 500 psig to 10000 psig

These type of valves are special purpose valves, which offers a safe and economical method of installation to control and measure pressure of liquids and gaseous media. They are ruggedly manufactured and precision machined to the most exacting dimensional tolerance to ensure perfect installation and application.

Manifolds are functionally installed to control measure, isolate, equalize, calibrate, drain, vent or differencial the pressure of liquids and gases.Manifold series offer optional 2,3 & 5 valves configurations, which come in remote mounting (pipe to pipe), direct mounting (pipe to flange) onto the instrument center (54mm).

Features:

• One piece forged body without welds for high and full safety

• Stainless steel handle for proper actuation.

• Type: - Two way, Three way and Five way Manifold.

• Material: - SS 316/ SS 304/ CS/ Monel

• Pressure Rating: - 6000 psig

The "Tiger" Pipefittings are far more compact and easier to install. Straight fittings are manufactured from forging material having wrench pads. The fitting design incorporates an NPT thread as standard and meets the requirements of ANSI B 31.1 Power Piping Code, ANSI B 31.3 Chemical Plant and Petroleum Refinery Pipll1g, and section VIII of ASME Boiler and Pressure Vessel code.

Available sizes Include 1/8" to 1" threads, which exceed the requirements of ANSI 1.20.1 for (NPT) tapered pipe threads. Protective end caps prevent damage to exposed threads.

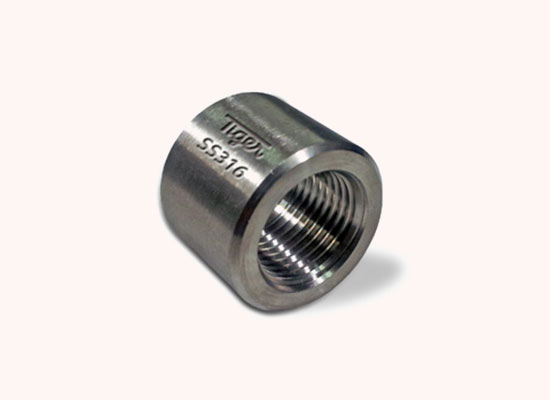

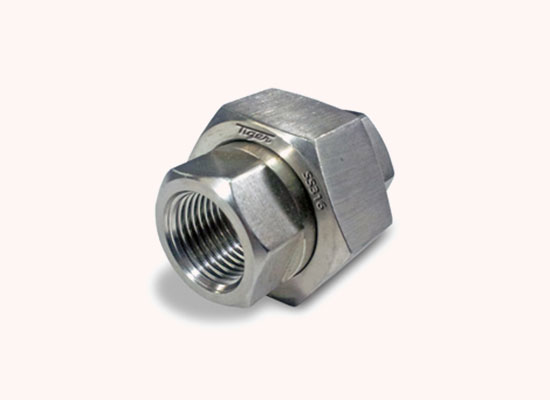

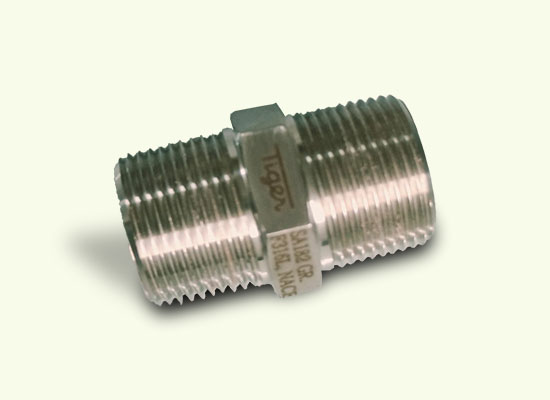

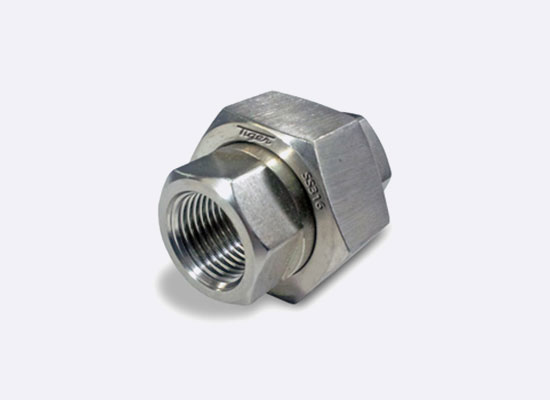

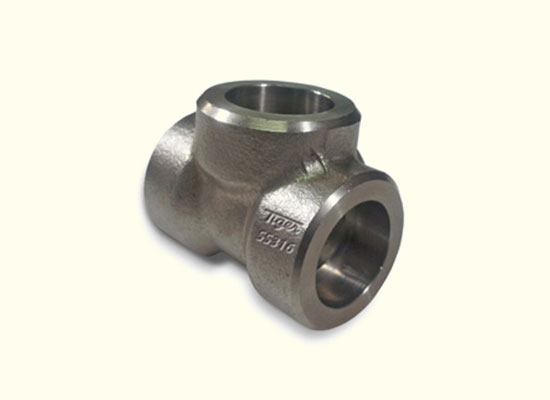

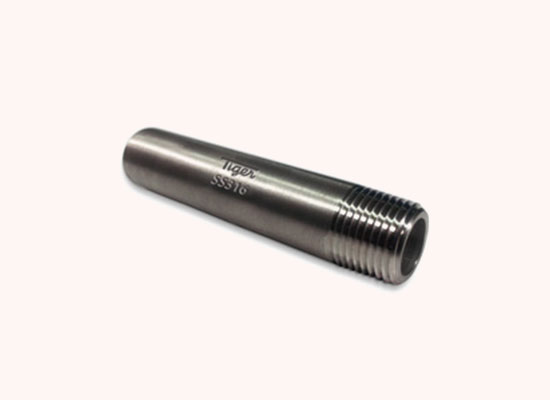

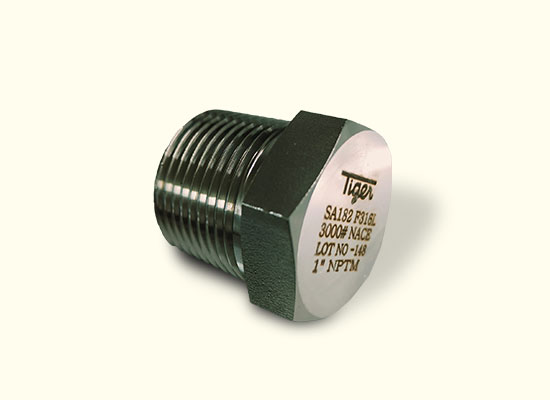

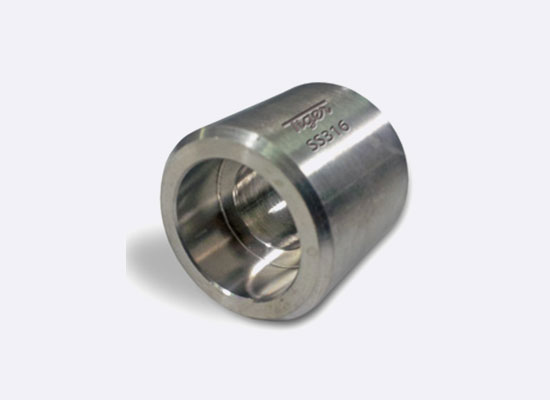

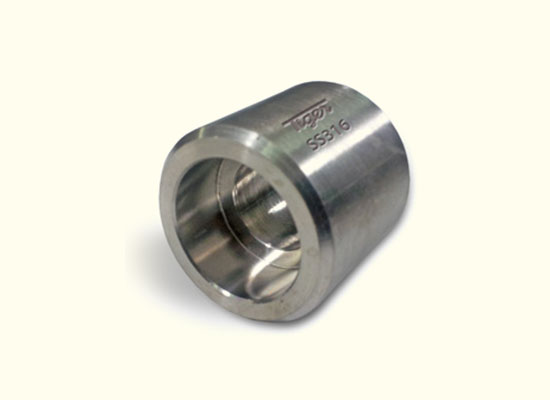

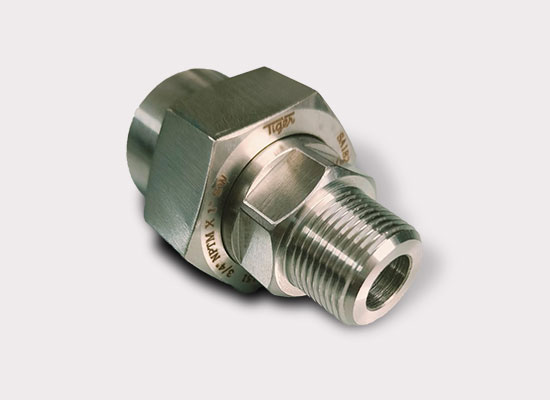

Adaptor, bushing, caps, couplings, crosses, elbows, nipples, plugs and tees are designed to fit the most applications.

Features:

• Fine threads construction to ensure leak free & reliable systems.

• Special attention is paid to ensure outstanding finish and appearance.

• Permanent and reliable connections.

• Strong, full section forgings used for shapes.

• Precision pipefittings for instrumentation and process control.

• Many choices of connections and configurations are available.

• Size – 1/8" to 1" NB

• End Connection: - NPT I BSP/ SW/ BW.

• Material: - SS 316/ SS 304/ CS/ Monel .

• Pressure Rating - 300 psig to 6000 psig.

The" Tiger" compression Tube Fitting is a 3 piece fitting of body, nut and ferrules furnished assembled. Ferrules swage on the outer surface of tubing assuring a leak proof Joint Only one end and quarter turn are required from hand assernbled to make safe connection.

Features:

• Fittings are designed to withstand high-pressure service and severe operation conditions.

• They make safe joint, which hold tight beyond the bursting strength of the tubing itself.

• They meet the severe requirements of the industry performance tests on pressure, vibration, impulse, repeated assembly etc

• Fittings are very easy to assemble because they require no threading, flaring, welding, soldering, only open wrench is needed.

• Design: - Double Ferrule Type

• Size Range: - 1/8" tube OD to 1" tube OD

• End Connection: - ODT/NPT/BSP/SW/BW.

• Material: - SS 316 / SS 304 / CS / Monel / Brass

• Pressure Rating: - 100 kg/cm2 to 400 kg/cm2

Other Features :

• Compression Type Design

• Double Ferrule Design

• Low torque assembly

• Positive leak free seal after assembly and reassembly

• Standard materials like SS 316, brass, Monel and others are available upon request.

• Variety of end connections and patterns.

• Prevents back flow of liquid or gases
• Available in two types
• Made of stainless steel with chemical and corrosion resistant
• Available range 50 NB to 100 NB
