Ball Valves

The "Tiger" Ball Valves have very compact design. Only a quarter turn operation is require to close the valve from fully open condition and vice-versa. The inside ball moves on Teflon seals, at the adaptor face and stem faces contact with the teflon rings. There is no torque in the operation of valve for long time.

Features:

• Two way on-off 3,4 or 5 way switching model.

• Robust body is available in diverse pattern include 2-way straight and angle bottom entry and side entry 3 way.

• Heavy directional black fenolic handle or lever handle.

• Panel mounting is available as an option.

• Internally loaded stem with shoulder to prevent stem blow out.

• Low operating torque.

• Floating ball design ensures leak proof shut off at high pressure.

• Maximum orifice to minimize the pressure drop.

• Rugged body construction and floating ball is machined from base stock.

• Handle with arrow indicates flow direction allowes quick operation and low torque with 1/4 turn.

• Integral ball-stem is machined form one single piece and best suited to encapsulating ball seals.

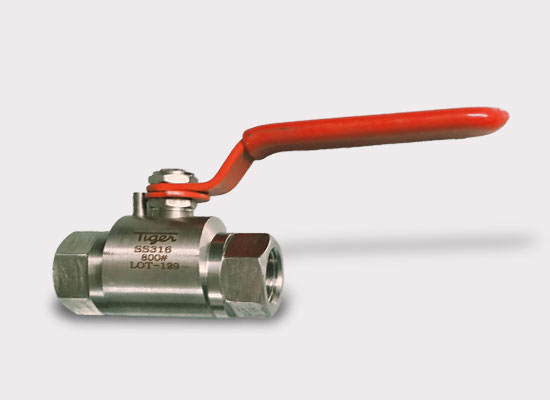

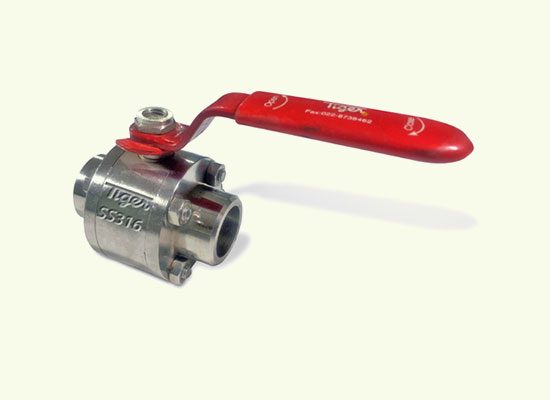

• Design : One piece and Three piece.

• Type : Two way, Three way, Four way and line mounting.

• Size : 1/4" to 2" NB is screwed end and 1/2" to 4" NB is flanged end.

• End connection : NPT / BSP / SW / BW and flanged as per BS-10, ASA and DIN Standards.

• Material : SS 316 / SS 304 / CS / Brass with SS working parts

• Pressure Rating - 300 psig to 5000 psig
